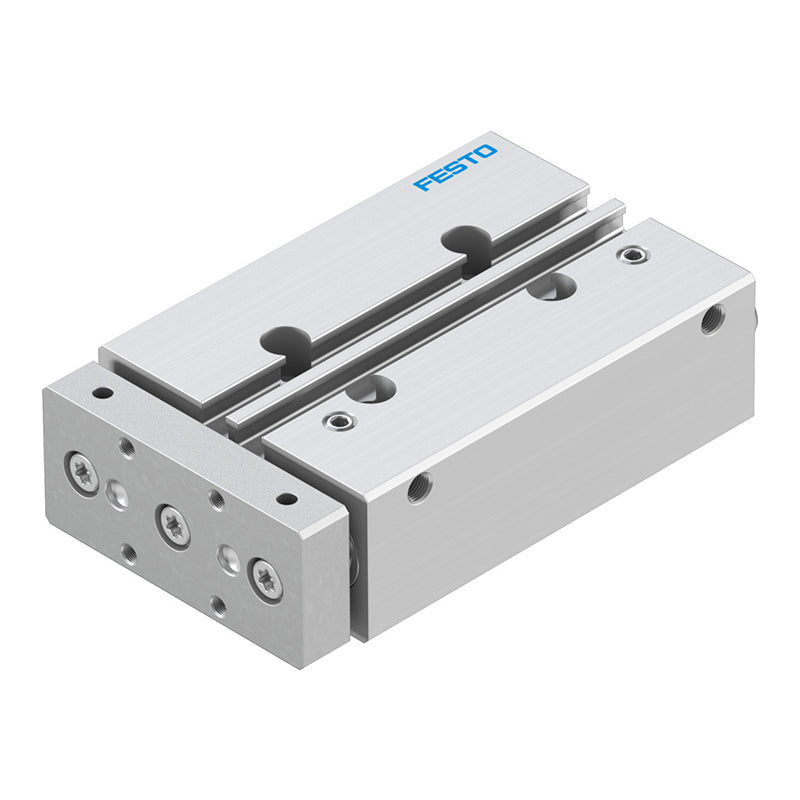

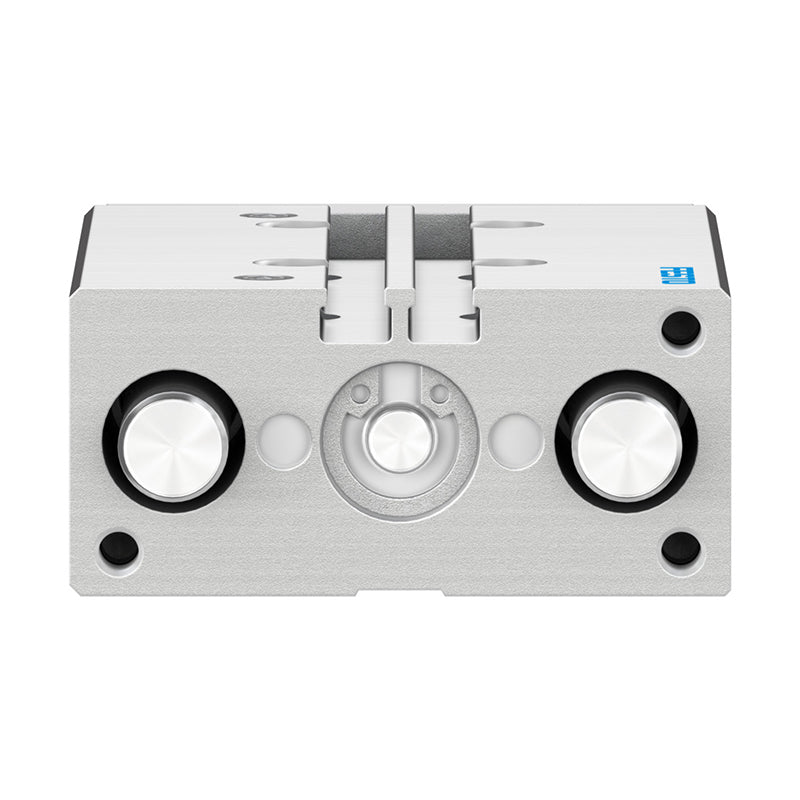

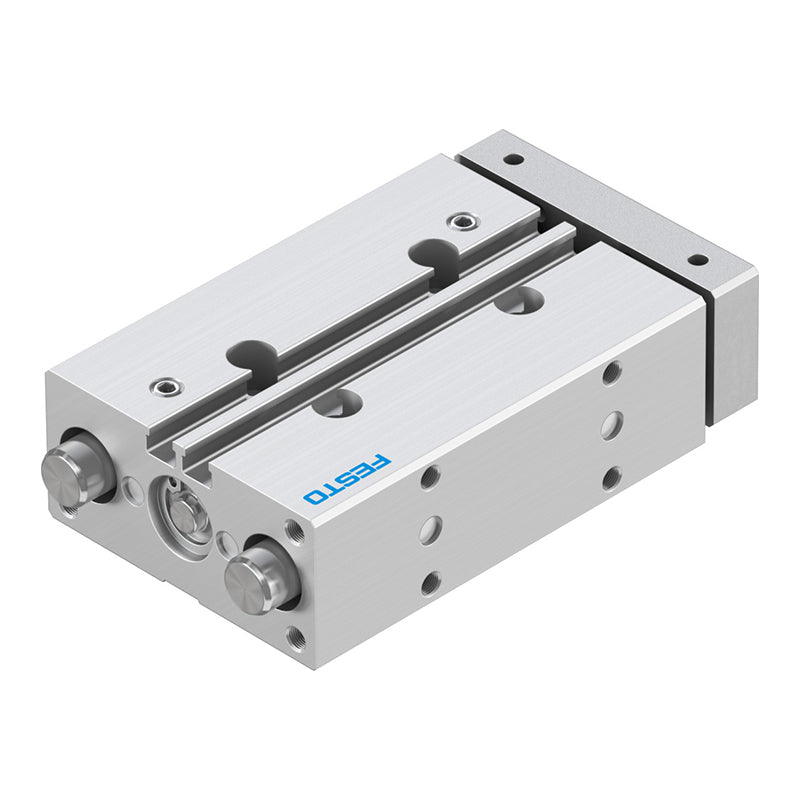

Technical specification

• Distance from centre of gravity of load to yoke plate xs25 mm
• Stroke50 mm
• Piston diameter12 mm
• Operating mode, drive unitYoke
• CushioningElastic cushioning rings/plates at both ends
• Mounting positionoptional
• GuidePlain-bearing guide
• DesignGuidance
• Position detectionVia proximity switch

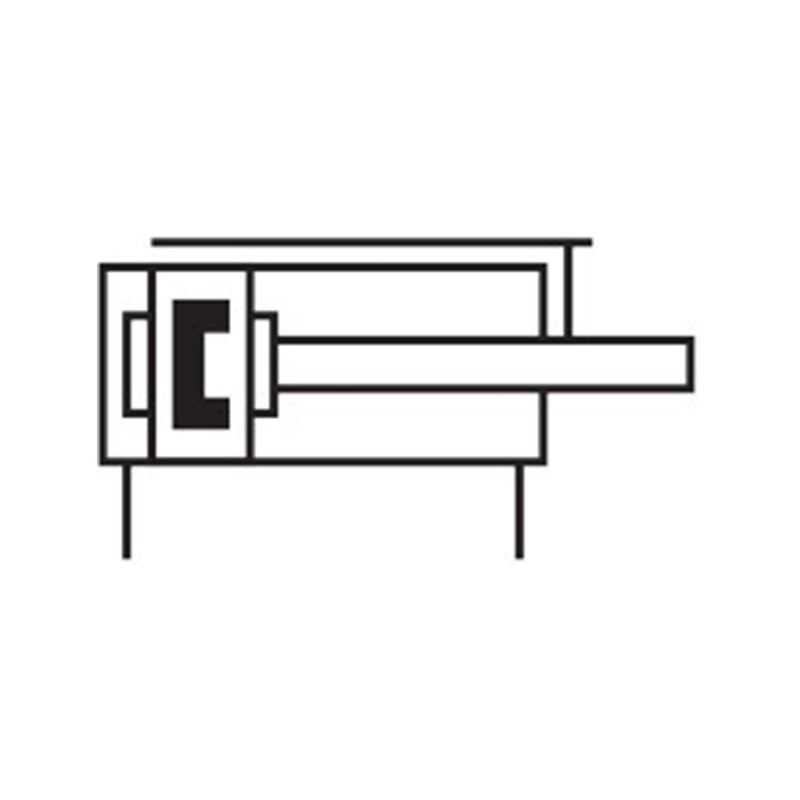

• Symbol00991737
• Operating pressure0.2 MPa ... 1 MPa
• Operating pressure2 bar ... 10 bar
• Max. speed0.8 m/s
• Mode of operationDouble-acting
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC1 - Low corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom classClass 6 according to ISO 14644-1
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions0.07 J
• Max. force Fy240 N
• Max. force Fy static240 N
• Max. force Fz240 N
• Max. force Fz static240 N
• Max. moment Mx4.92 Nm
• Max. torque Mx static4.92 Nm
• Max. moment My3.74 Nm
• Max. torque My static3.74 Nm
• Max. moment Mz3.74 Nm
• Max. torque Mz static3.74 Nm
• Max. permissible torque load Mx as a function of stroke0.73 Nm
• Max. effective load dependent upon stroke at defined distance xs28 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke51 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke68 N
• Moving mass246 g
• Product weight544 g
• alternative connectionsSee product drawing
• Pneumatic connectionM5
• Note on materialsRoHS-compliant
• Material coverWrought aluminium alloy
• Material sealsNBR
• Material housingWrought aluminium alloy
• Material piston rodHigh-alloy stainless steel
