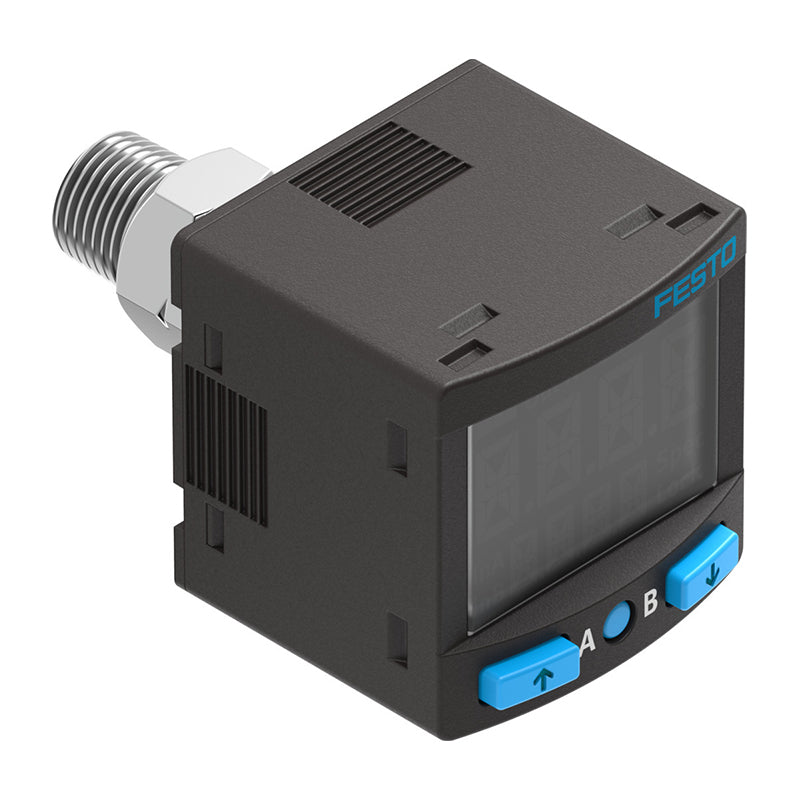

Technical specification

• Symbol00995686
• ApprovalRCM trademark c UL us listed (OL)
• CE mark (see declaration of conformity)To EU EMC Directive In accordance with EU RoHS Directive
• UKCA marking (see declaration of conformity)To UK instructions for EMC To UK RoHS instructions
• Certificate issuing authorityUL E322346
• Note on materialsRoHS-compliant
• Measured variableRelative pressure
• Measurement methodPiezoresistive pressure sensor
• Start value for pressure measuring range0 MPa
• Start value for pressure measuring range0 bar
• Start value for pressure measuring range0 psi
• End value for pressure measuring range1 MPa
• End value for pressure measuring range10 bar
• End value for pressure measuring range145 psi
• Max. overload pressure15 bar
• Overload pressure1.5 MPa
• Overload pressure15 bar
• Overload pressure217.5 psi
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4] Inert gases
• Note on operating and pilot mediumLubricated operation possible
• Media temperature0 °C ... 50 °C
• Ambient temperature0 °C ... 50 °C
• Accuracy in ± % FS1.5 %FS
• Repetition accuracy in ± %FS0.3 %FS
• Temperature coefficient in ± %FS/K0.05 %FS/K

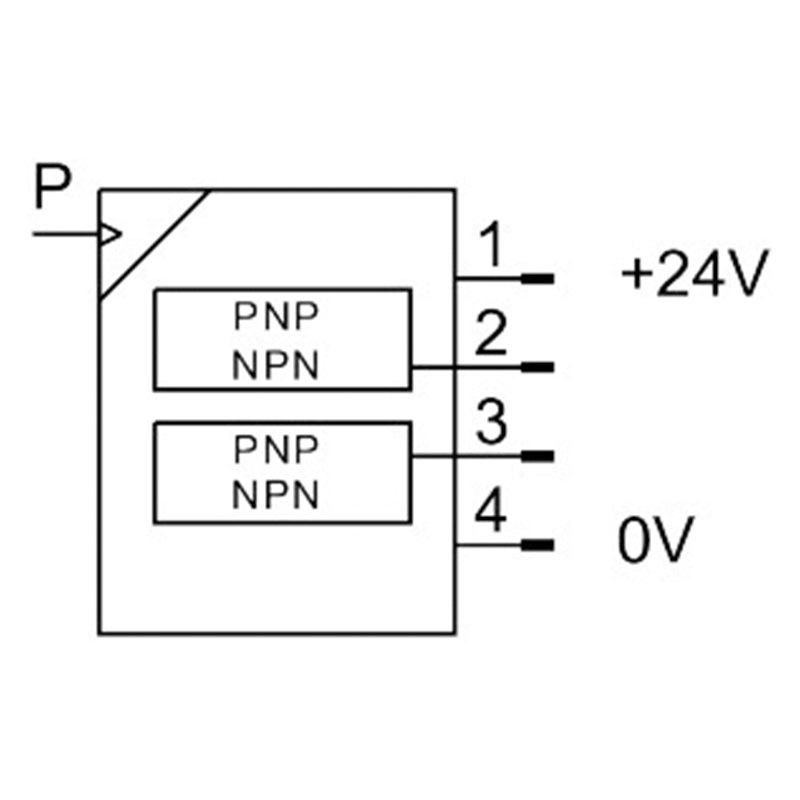

• Switching output2 x PNP or 2 x NPN, switchable
• Switching functionWindow comparator Threshold value comparator Auto difference monitoring
• Switching element functionN/C or N/O contact, switchable
• Max. output current100 mA
• Short circuit current ratingyes
• Operational voltage range DC15 V ... 30 V
• Reverse polarity protectionFor all electrical connections
• Electrical connection 1, connection typePlugs
• Electrical connection 1, connector systemConnection pattern L1J
• Electrical connection 1, number of connections/cores4
• Electrical connection 1, connection pattern00995428
• Type of mountingFront panel mounting Via thread Via wall/surface bracket
• Mounting positionoptional

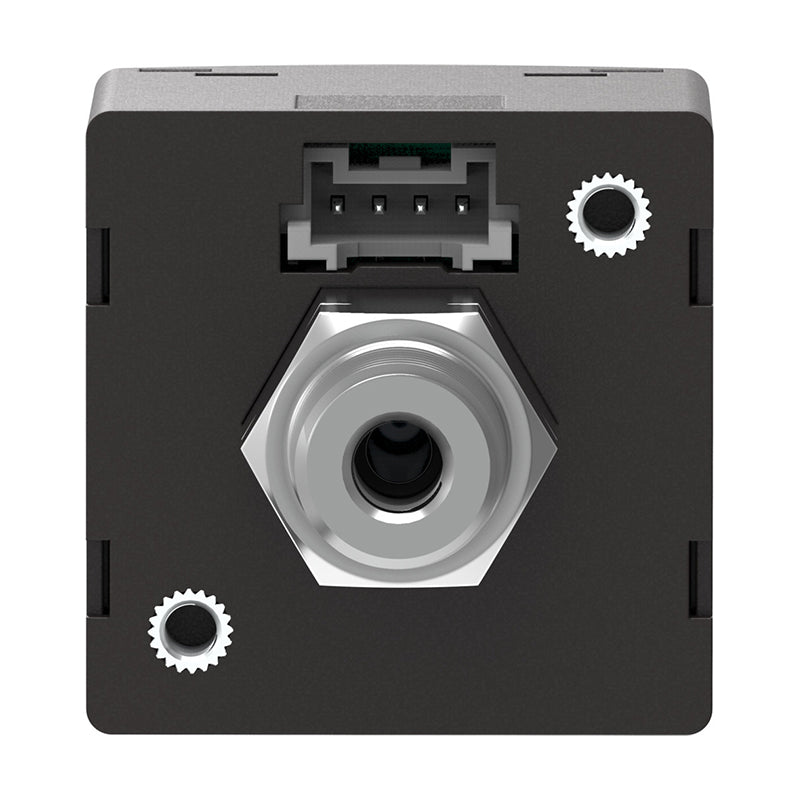

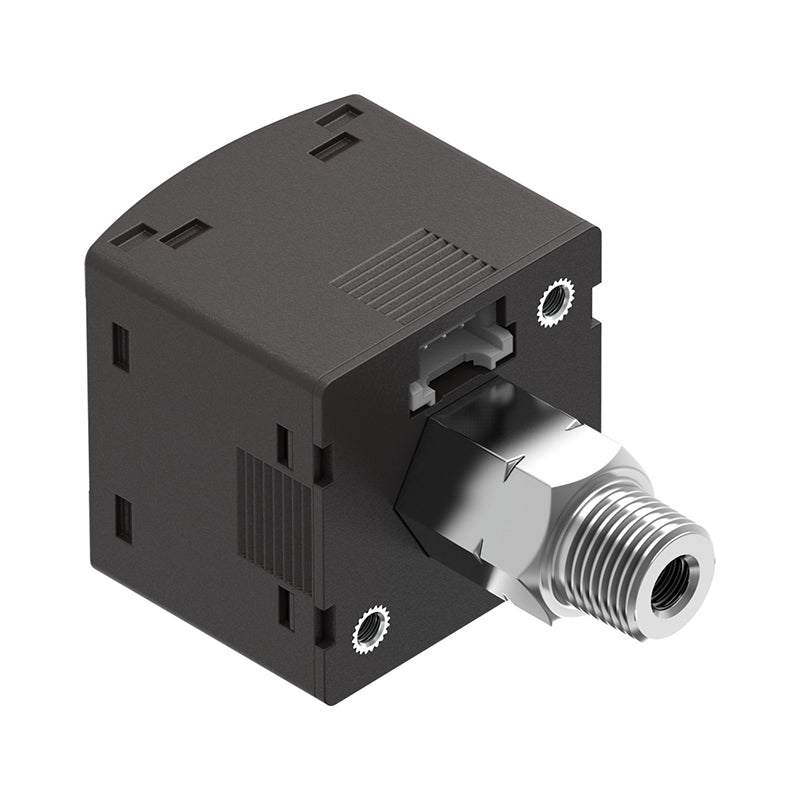

• Pneumatic connectionMale thread R1/8 Female thread M5
• Product weight46 g
• Material housingPA-reinforced
• Material in contact with the mediumFPM High-alloy stainless steel

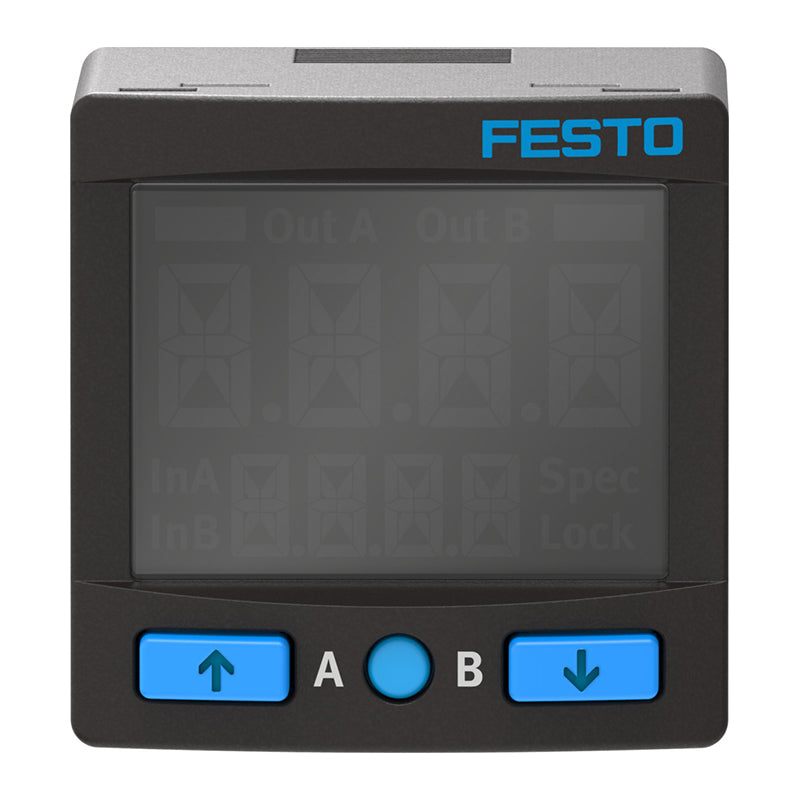

• Display typeIlluminated LCD
• Displayable unitsMPa bar inH2O inHg kPa kgf/cm² mbar mmHg psi
• Setting optionsTeach-in Via display and keys
• Protection against tamperingPIN code
• Setting range threshold value0 % ... 100 %
• Setting range hysteresis0 % ... 90 %
• Degree of protectionIP40
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Suitability for the production of Li-ion batteriesSuitable for battery production according to the Festo internal definition of the degree of severity F1A with restrictions regarding the use of Cu/Zn/Ni
• Cleanroom classClass 4 according to ISO 14644-1
