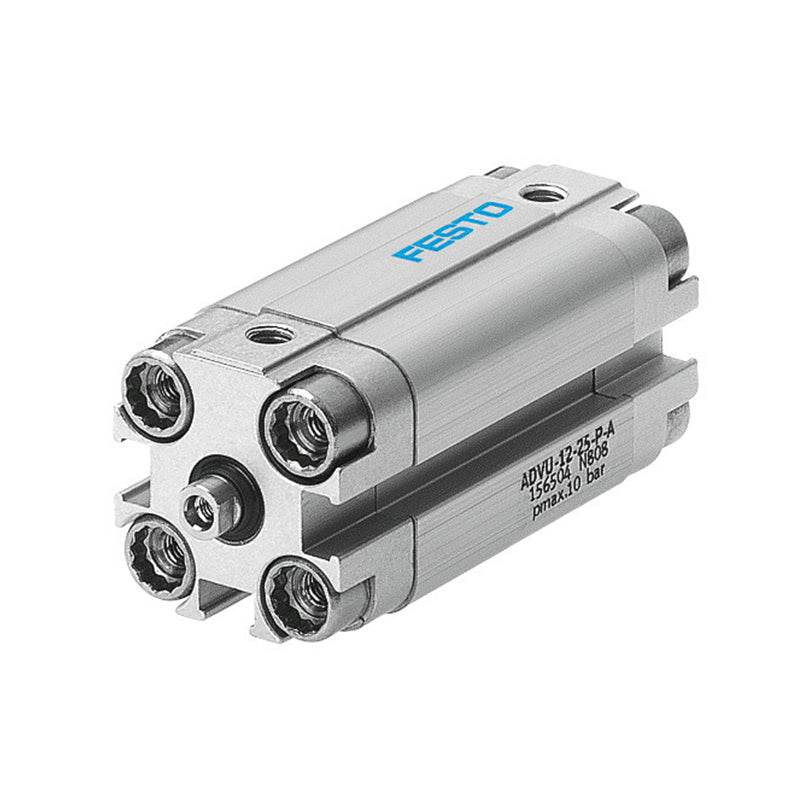

Technical specification

• Stroke50 mm
• Piston diameter25 mm
• Piston rod threadM5
• CushioningElastic cushioning rings/plates at both ends
• Mounting positionoptional
• Mode of operationDouble-acting
• Piston-rod endFemale thread
• DesignPiston Piston rod
• Position detectionVia proximity switch

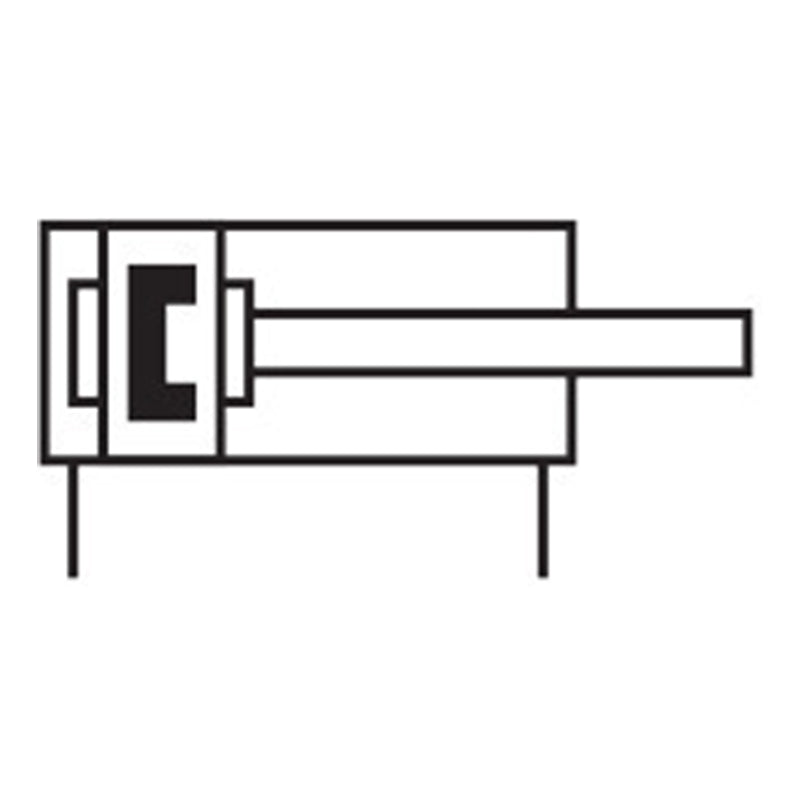

• Symbol00991217
• VariantsPiston rod at one end
• Operating pressure0.1 MPa ... 1 MPa
• Operating pressure1 bar ... 10 bar
• Operating pressure14.5 psi ... 145 psi
• Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions0.1 J
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295 N
• Moving mass for 0 mm stroke26 g
• Additional moving mass per 10 mm stroke6 g
• Basic weight for 0 mm stroke180 g
• Additional weight per 10 mm stroke28 g
• Type of mountingEither: With through-hole With accessories
• Pneumatic connectionM5
• Material collar screwsGalvanised steel
• Material coverWrought aluminium alloy
• Material dynamic sealsNBR TPE-U(PU)
• Material piston rodHigh-alloy stainless steel
• Material cylinder barrelWrought aluminium alloy
